Licensing¶

Before running RiverFlow2D or OilFlow2D, a license must be activated. Hydronia offers two models; the steps to activate differ between them.

License models¶

Standalone — a single license tied to one computer. Activates once; can only be used from that machine. Best for individual engineers and small teams.
Network — a centralized license on a shared machine (the network server) that lets any number of client machines install the software, but limits the number of concurrent users to what you purchased. Best for larger teams and office environments.

Hydronia's licensing layer is CopyMinder. The license key you receive is a CopyMinder product code.

Standalone activation¶

Do this on the machine that will run the software.

Open the Hydronia DIP shortcut on your desktop.
In the left-hand Control Data section, go to Options → License.
You'll be offered three options:
Reactivate License
Install Network License Server
Check for Updates
Click Reactivate License.
When the activation dialog opens, select Configure as a standalone program.
Enter the license key Hydronia sent you.
Click OK. CopyMinder contacts its server to validate the key.
Fill out the Product Registration dialog with your details.

Once registration finishes, the software is licensed on that machine. You can now enable the QGIS plugin.

One activation per license

A standalone license can only activate once. If you need to move it to another machine, contact support@hydronia.com for a transfer.

Network server installation¶

Do this once, on the machine that will host the license server (the network server).

The Network Administrator needs a CopyMinder license key configured for network use. Don't share this key with end-users — it's separate from the client activation step and giving it out can cause client activations to fail in confusing ways.

Open RiverFlow2DDIP on the server.
Control Data → Options → License.
Click Install Network License Server.
CMServer's configuration window opens.
Under Startup Modes, pick:
Service (recommended) — runs as a Windows background service; no login required on the server.
Application — requires an interactive login on the server. Use only if your IT policy forbids services.
Under Network Configuration, choose Automatic.
Click Start.
When prompted for a License Key, enter the network license key from Hydronia Support.

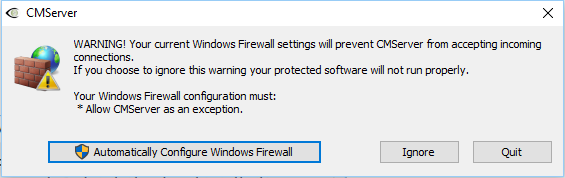

Accept the firewall prompt — choose Automatically Configure Windows Firewall.

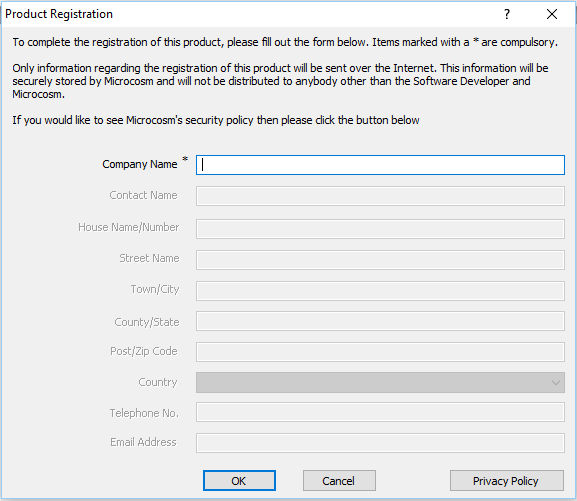

Fill out Product Registration with your organization's details.
On success, you'll see a confirmation message. The server is now ready for clients.

Moving an existing network license server¶

Use this procedure when moving an existing network license server to a different Windows computer. Release the old server before activating the network license key on the new server.

Release the old server first

The CMServer service does not always have a clean uninstall entry. Do not activate the same network license key on the new server while the old service remains registered.

Remove or disable the old CMServer service¶

On the current license-server computer:

Open the Windows Services console by running services.msc as an administrator.
Find the CopyMinder/CMServer entry. Open its Properties and check the Service name. It is usually CMSERVER or CMSERVER_AVU. Use the service name shown in Properties, not only the display name.
Click Stop, then choose one of these options:
- Disable the service: set Startup type to Disabled, click Apply, and close the dialog.
- Remove the service: open Command Prompt as an administrator and run the commands for the matching service name:

  For CMSERVER:
```
sc.exe stop CMSERVER
sc.exe delete CMSERVER
```
  For CMSERVER_AVU:
```
sc.exe stop CMSERVER_AVU
sc.exe delete CMSERVER_AVU
```
  Use only the block matching the service name shown in Properties. Refresh services.msc and confirm that the service is disabled or no longer listed before continuing.

Install and activate the new server¶

Install RiverFlow2D on the new server and reboot the computer before activating it.
Open RiverFlow2DDIP on the new server.
Go to Control Data → Options → License and click Install Network License Server.
In the CMServer configuration window, choose Service under Startup Modes, select Automatic under Network Configuration, and click Start.
Enter the network license key provided by Hydronia, accept the Windows Firewall configuration prompt, and complete Product Registration.

Reconfigure the client workstations¶

On every client workstation:

Install RiverFlow2D and reboot if prompted.
Open RiverFlow2DDIP.
Go to Control Data → Options → License → Reactivate License and select Configure as a Network Client.
Allow the client to detect the new server, or enter the new server's hostname or IP address followed by :10589 if needed.

If activation reports Error 739¶

If activation reports Error 739 ("This program has been installed or copied too many times"), send the exact error and the license key to Hydronia Support. Hydronia can reset the license server so activation can proceed.

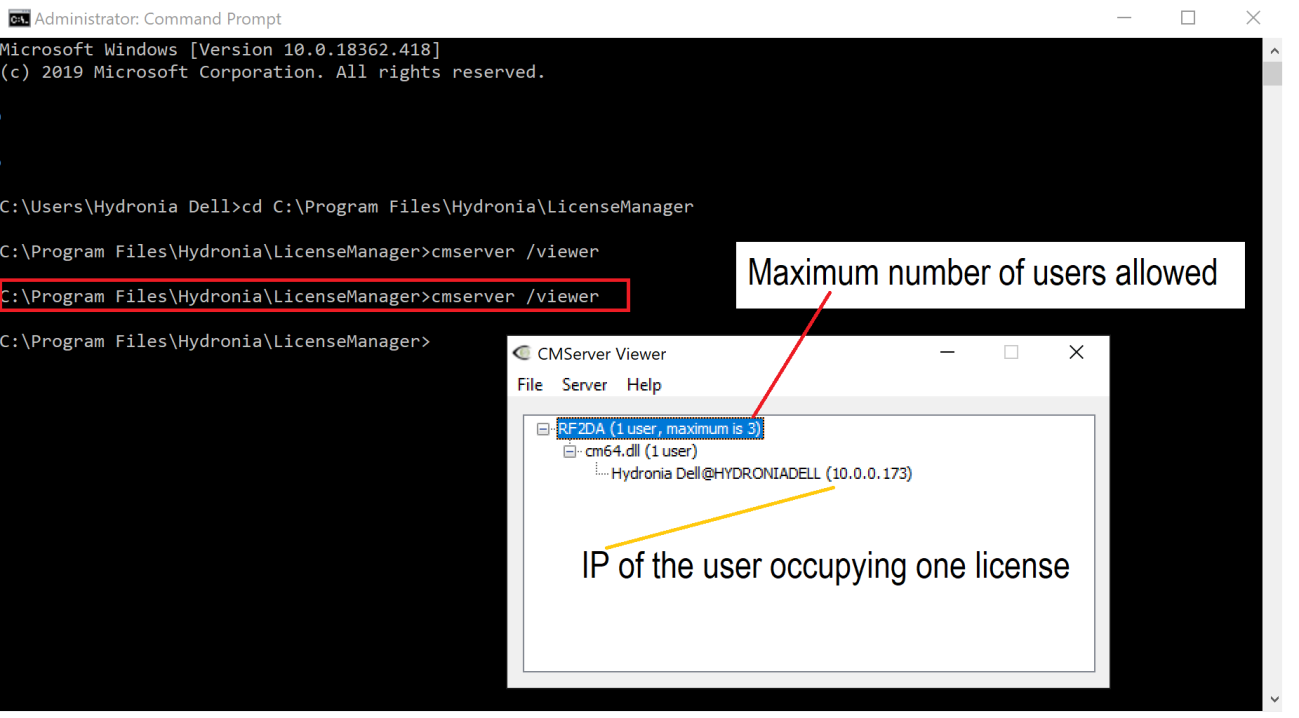

Checking who's using a network license¶

In the CMServer viewer, every active license appears with the client's machine name or IP and username.

If CMServer is running as a service, open the viewer from a command prompt:

cmserver /viewer

This connects to the running service and displays current usage.

Network client installation¶

Do this on every client workstation that should run the software.

Install the software first (see Installation), then:

Open RiverFlow2DDIP on the client.
Control Data → Options → License → Reactivate License.
Select Configure as a Network Client.
In most cases the client auto-detects the CopyMinder server on the LAN and fills in the details.
If auto-detection fails, enter the server's IP address or hostname followed by :10589 — for example LenovoJJ:10589 or 10.0.0.12:10589.
Click OK. The client should start working immediately.

Repeat for each client machine. Clients can be installed on as many computers as you want — only the configured number of concurrent users is capped.

Troubleshooting¶

Activation fails with no error¶

Confirm the machine has rebooted after the install. Licensing components are unreliable until the first post-install reboot.

"Cannot reach license server" on a client¶

Verify the server's IP/hostname is reachable: ping <server> from the client.
Confirm port 10589 is open on the server's Windows Firewall.
If CMServer is running as a service, check the Windows Services panel for CopyMinder Server in the Running state.

Finding your license file¶

If support needs to see the raw license record, open the correct file in Notepad:

Standalone: C:\ProgramData\AVU\RF2DA.ini
Network License Server: C:\Program Files\Hydronia\LicenseManager\RF2DA.ini

Paste the contents into a support email — never share these in public channels.

Contact¶

For anything licensing-related, reach Hydronia Support at support@hydronia.com.
